Connection - side
Connection thread A, B = 1/2"
Maximum torque during operation = 94 Nm
Maximum torque in intervals = 119 Nm
Maximum torque at maximum load = 143 Nm
Maximum number of revolutions during operation = 1,210 RPM.
Maximum number of revolutions in intervals = 1,515 RPM.
Minimum number of revolutions = 10 RPM.
Pumping volume = 49.5 cm³/rev.

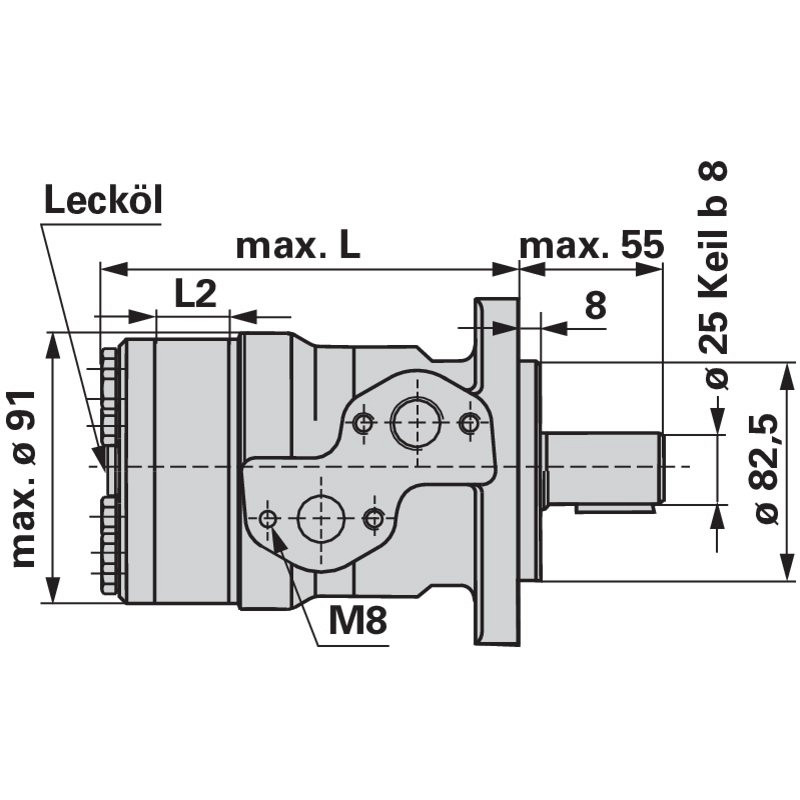

Length (L) = 136 mm
Length 2 (L2) = 6.7 mm
Maximum power during operation = 10.1 kW
Maximum power in intervals = 12.2 kW
Motor shaft diameter (d) = 25 mm
