Connection - side
Connection thread A, B = 3/8"
Maximum torque during operation = 45 Nm
Maximum torque in intervals = 35 Nm
Maximum torque at maximum load = 51 Nm
Maximum number of revolutions during operation = 1,000 RPM.
Maximum number of revolutions in intervals = 1,250 RPM.
Minimum number of revolutions = 30 RPM.
Pumping volume = 20 cm³/rev.

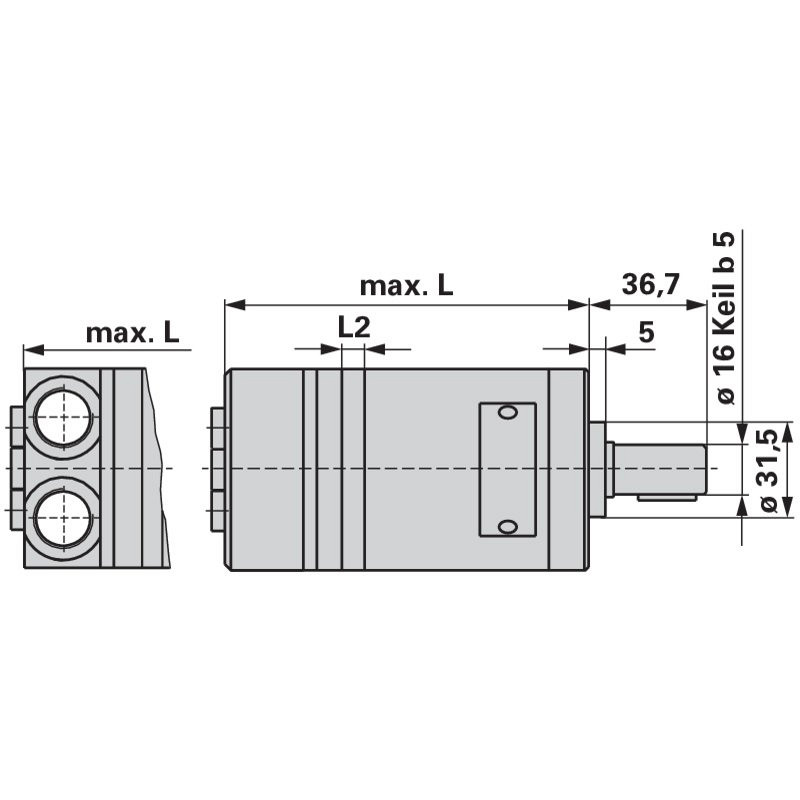

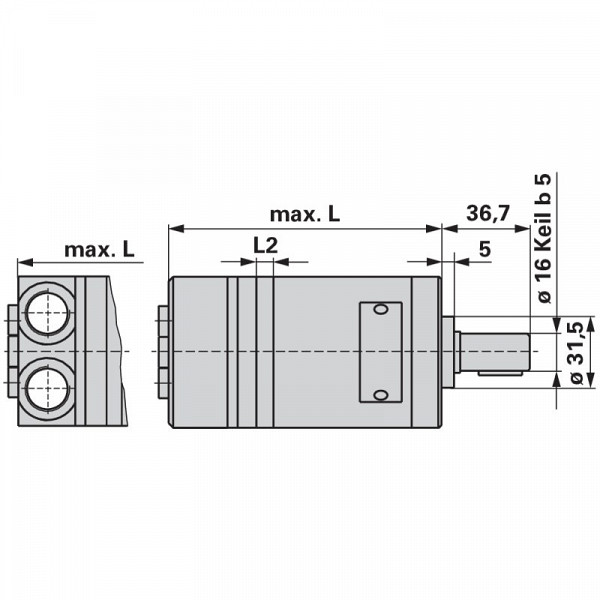

Length (L) = 109 mm
Length 2 (L2) = 8.5 mm
Maximum power during operation = 2.4 kW
Maximum power in intervals = 3.2 kW
Motor shaft diameter (d) = 16 mm
